Truckstopper 9-40
Gallery & Videos
Applications

The Safetyflex Truckstopper 9-40 is ideal for:

  • Airports
  • Sports Arenas
  • Retail Parks
  • Police Stations
  • Critical Infrastructure
  • Government Buildings
  • Conference Centres
Why Safetyflex

Safetyflex solutions include:

  • Flexibility to design to your requirements
  • Manufacture of bespoke and one off products
  • On-site management and installation
  • Street furniture available on PAS rated spring bollards
  • High security fencing available on PAS 68:2010
  • Car Park Spring barriers tested to BS6399 and BS1680

The Truckstopper 9-40 Crash Rated 40MPH Removable Bollard

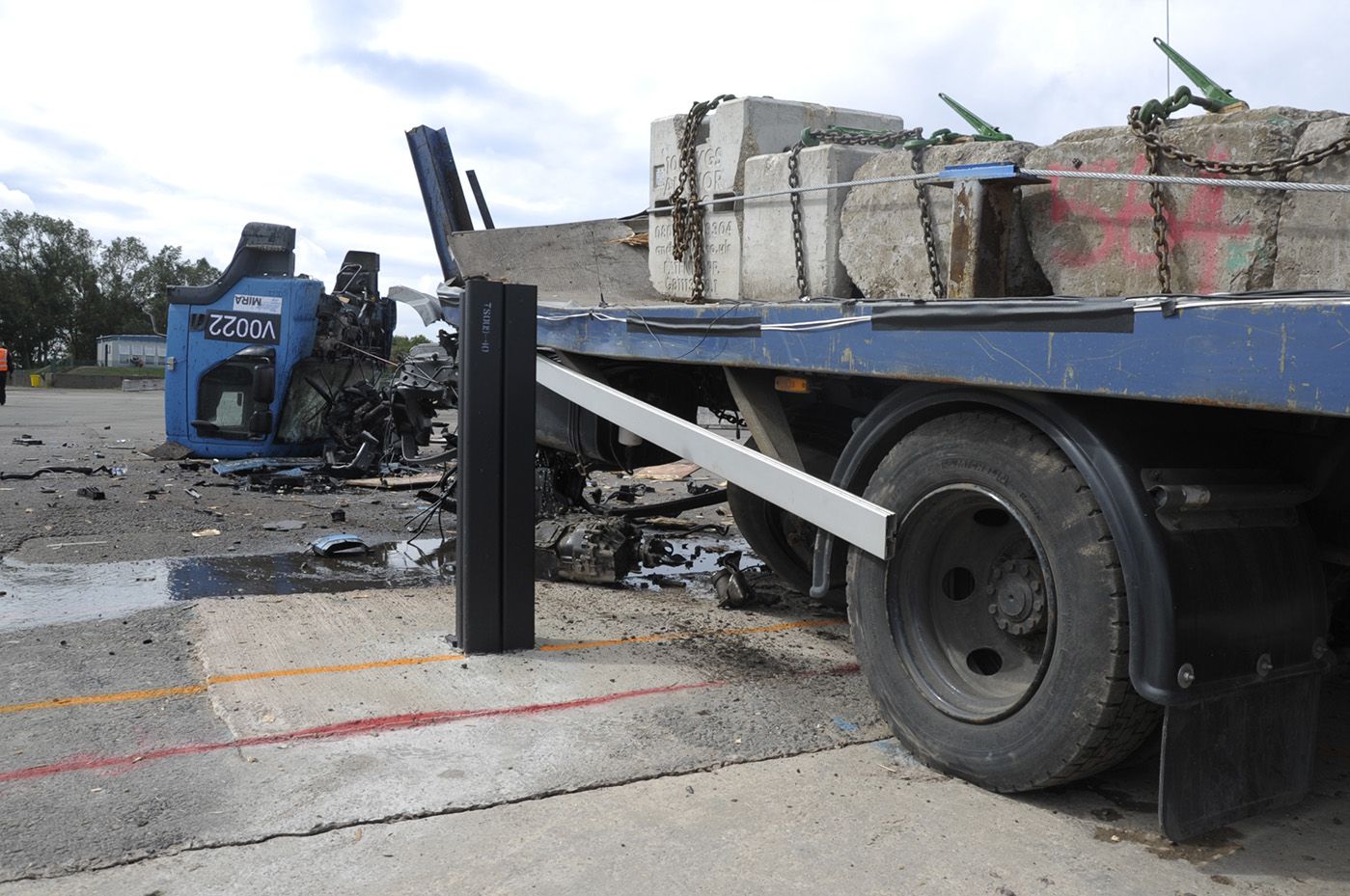

Stops a 7.5 tonne truck travelling at 40mph/64kph

Truckstopper 9-40

Patent Granted

Crash Rated with 7.5 Tonne GVW Truck at 40Mph/64Kph 'Super Shallow Foundation Only 20cm Deep'. This bollard is the smallest and cheapest removable (N2A) bollard system on the market today.

THIS BOLLARD IS THE SMALLEST AND CHEAPEST (N2A) 40MPH BOLLARD SYSTEM ON THE MARKET TODAY

ALSO CRASH TESTED 50mph/80km/h >> see Truckstopper 9-50

IWA 14 Vehicle Performance Classification

TRUCKSTOPPER 9-40 (IWA 14-1:2013) V/7200[N3C]/80/90:10.5
Vehice Test Weight Vehicle Class Vehicle Speed kph Vehicle Angle o Vehicle Penetration m Footing Depth mm
V/7200 KG N2A 64 90 2.4 200

AT LAST A NEW DESIGN THAT DOES ALL THIS...

  • Shallow foundation only 20cm / 8in deep - Reducing the need to re-divert utilities
  • This bollard can be fixed or removable for full vehicle access
  • Comes in break down kits allowing for ease of transport and installation - keeping costs down
  • Very aesthetically pleasing

This new Anti Terrorist Bollard, has been designed with the added advantage that the slipper box or (post socket box) can be moved separately and is not rigid. The box can be swivelled around a corner of 90 degrees or more if needed and can adapt to an up and down slopping surface without having to change the box design.

Want to find out more?

If you wish to find out more about the Truckstopper 9-40 then please complete our enquiry form, alternatively you can call us at +44 (0) 2476 662116 or email us on
